Helios 44-2: Removing / Unscrewing Front Element
Got a Helios 44-2. Nice lens. Pretty old (serial number may imply it's from 1979), but in decent condition; $30 shipped. It had a lot of dust and marks on both the front and rear elements, but they were very easily cleaned with MagicFiber-brand microfiber cloth which, frankly, lives up to its name - the thing is magical. (I got mine from Amazon; cheaper knockoffs may scratch the glass, so I wanted a reputable source.)
But it has fungus after the front element.
Fungus
How do I open it up to get at it?
Unscrewing or removing the front element can be done in one of two ways. One, I believe you can disassemble the entire lens, and remove the front element from the inside components. Two, you can unscrew the front element directly. Some source suggest putting rubber (like from a burst balloon) onto the element and using a cap to apply pressure and unscrew. But it has grooves for a reason (see at 3 O'clock and 9 O'clock):

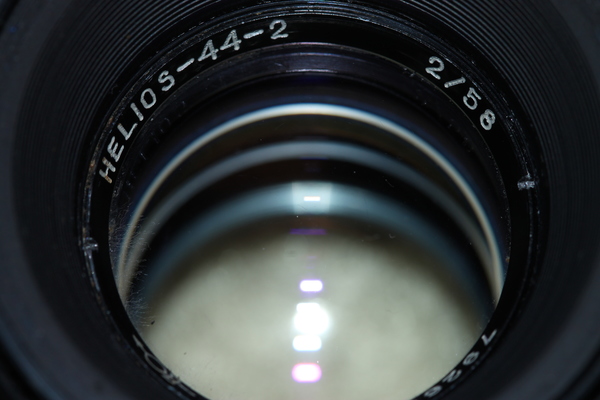

Helios 44-2
Technically speaking, one can use a simple screwdriver and some force to unscrew the front element. However, that has a high chance of slipping! And then your glass has a brand new scratch on it. Bad.
The tool you want is called a Lens Spanner Wrench. You can get one from Amazon or from Ebay. I chose to get mine from Ebay, and got a Arc (curved) lens spanner wrench, since I think it'll do a better job.
I wrote this article because it took me ages to figure out the name of the tool I was looking for!

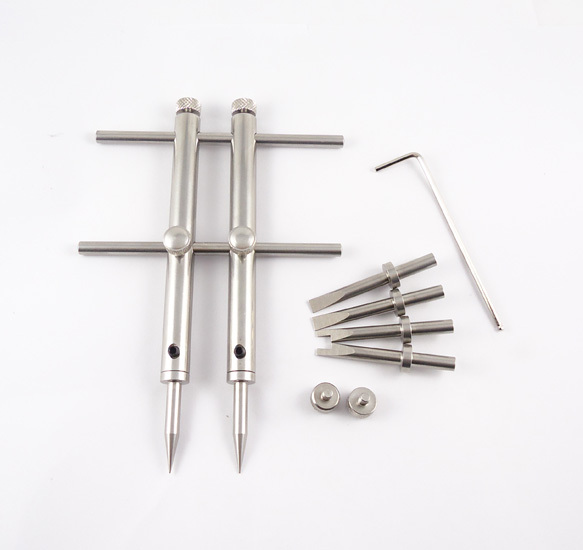

Lens Spanner Wrench
Credit www.aliexpress.com

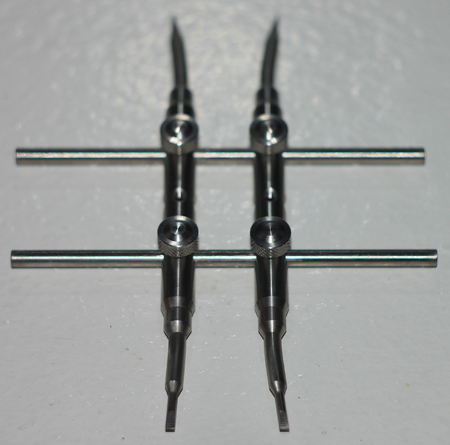

Update 11/4/13: It worked. Here's a picture taken with the now fungus-free lens:
Spanner Wrench

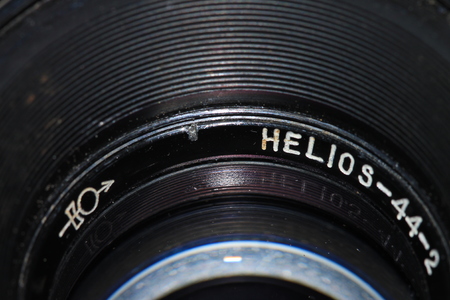

And some close-up shots showing no more fungus:

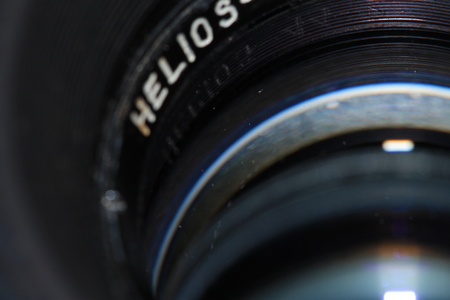

No fungus! Definitely no fungus!
Now, that front element was screwed on tight. There is no way I would have gotten it off without this wonderful tool. Good luck!
(Disclaimer: If you break your lenses, not my fault.)
Ches Koblents
October 25, 2013
