Had some old 2-axis mini joysticks laying around. They're not really breadboardable, a bit awkward to use, and their pins kept getting bent during my various relocations (they do have a packaging material, but they keep falling out.) Design files and renders after the jump.

Credit: CTS Electrocomponents

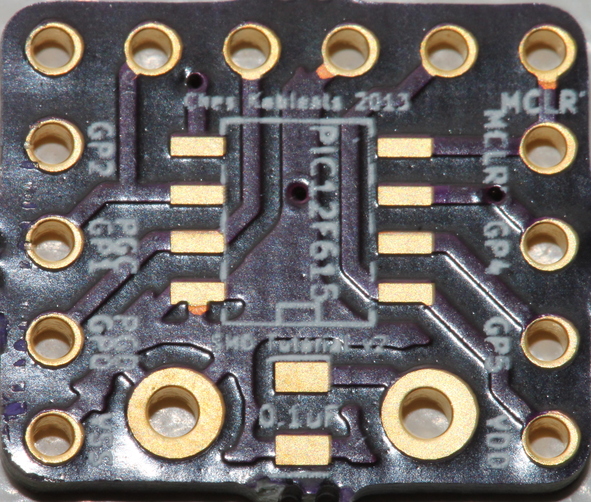

This is an update to my previous spin. I've fixed all of the issues! Version two has:

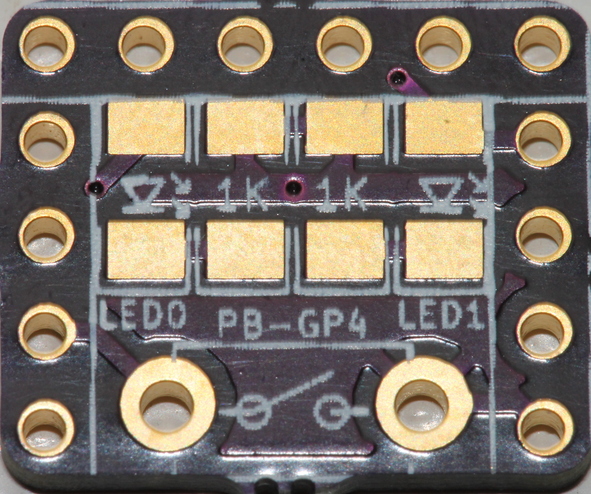

• PIC12F615 - 8 pin SOIC - or any other PIC with the same pinout
• Two 1k resistors - 1206
• Two LEDs - 1206
• Pushbutton, two pin - through hole
• Debounce capacitor - 0805
• Two 4-pin headers, one on each side, for the PIC breakout
• One 6-pin ICSP (in-circuit serial programmer) header for PIC programming

Here're the improvements I made, and some I'd like to make. In order of importance, improvements:

So yeah, I got a free Arduino Intel Galileo on October 11, 2013. Isn't that a pretty box?

Full disclosure: I am an Intel employee as of this post (10/14/2013). The opinions expressed here are only my own, not that of my employer. I did not work on the Quark. I am using my personal pictures, publicly available sources of information, and a little bit of guesswork.

At Intel's Galileo documentation site, you can find schematics, reference designs, a bill of materials, release notes, shields, and so on.

Here's the unboxing.

OSH Park is a batch PCB service for 2- and 4-layer boards. They charge $5 / square inch, including shipping. They send you three copies of your board (or any other multiple of three). I don't know their minimum board sizes, but the smallest boards I've ordered were 60 cents. The turn-around time is about two weeks for me, with about two weeks for them to panelize, order, and receive the boards, and a day to ship (note: I currently live 20 minutes away from them, so this is probably more like 2.5 weeks normally). The quality is high enough, and the DRC rule limitations are acceptable, for hobbyist work. (Update 12/03/13: They seem to have reduced build time to 1 - 1.5 weeks!)

Because of how easy it is to order with them, this article is nearly redundant. Nevertheless, here's how I made these:

Seeedstudio Fusion is a batch PCB service for 2- and 4-layer boards. With shipping, the cheapest option is ten boards, 5x5 cm (2x2 inch) maximum size, for $15. The turn-around time is just about a month, which includes about a week to build and about three to ship. The quality is high enough, and the DRC rule limitations are acceptable, for hobbyist work.

Their instructions are not entirely clear for KiCAD. Here's how I got started, and received boards precisely as I expected.

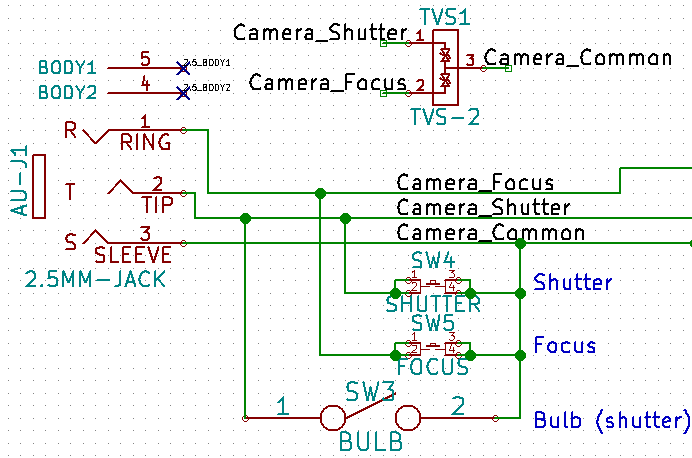

As mentioned in my previous article, a Canon remote control only needs a 2.5mm TRS audio jack, and only needs to short tip-to-sleeve to shoot and ring-to-sleeve to focus. I took this knowledge and built a simple circuit: A pushbutton to focus, a pushbutton to shoot, and a switch for bulb mode (the switch activates the shutter just like the shutter button, but you don't have to hold it yourself.) I've included an optional TVS diode, which you may feel free to ignore. Here's the circuit:

A transient voltage suppression diode protects against ESD, or tries to. I wasn't entirely sure what the proper specifications were on my remote control, so I picked one that looked reasonable. Feel free to ignore it.

But if I want a remote control, I want one that's automated, not one I always have to press myself. The manual function isn't going to disappear, but more fun stuff gets added. To give an advance summary, the board is going to get USB, serial, signalling I/O with buffers, a battery with a charger IC and a boost converter/regulator, a microcontroller, user input, user output, and even redundancy.

Linux Mint has a silly thing, where there is a banner across the top of the file browser when there are certain file types in the current directory. For example, the one that annoyed me most read "Media contains digital photos". Why does it feel the need to tell me? Here's how I got rid of it, thanks to this source.

Add these lines to ~/.local/share/applications/mimeapps.list:

[Removed Associations]
x-content/image-dcf=gthumb-import.desktop;
x-content/image-picturecd=gthumb-import.desktop;brasero.desktop;

Then update the mime database and restart caja (closes all your open file browsers)

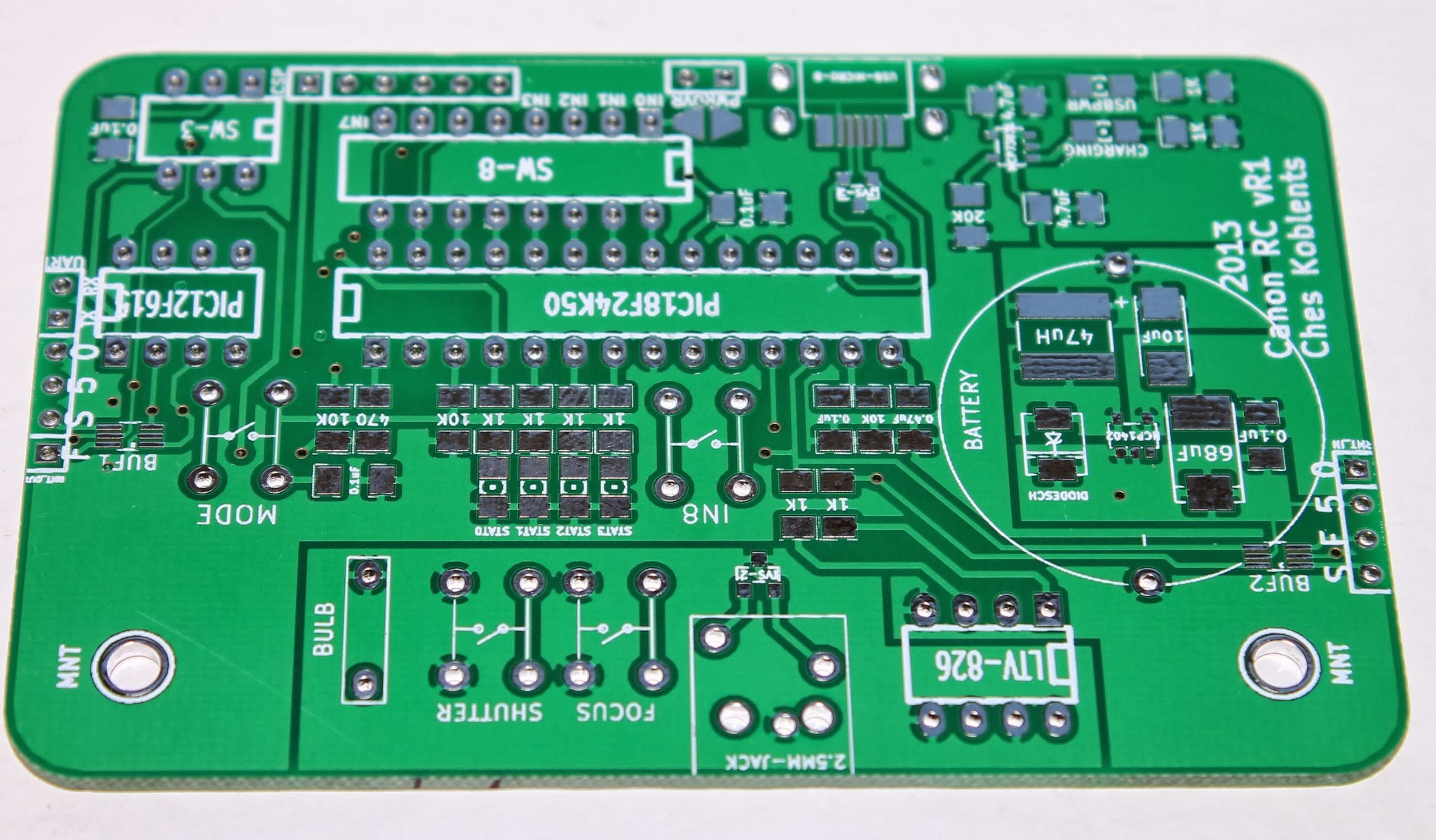

An alternate title: My Canon T3 programmable remote control is here!

Nice, eh? Costs $10 for 2x2" (5x5 cm) boards (ten count), $20 for 4x4" (10x10 cm) boards (five count). Add five dollars shipping, and a month between ordering and receiving them. Not bad on a budget. Link to the service.

Osh Park had a one-week turnaround time for this order. (I wonder if that will keep happening? I can only hope.) Up soon: tutorials based on these boards!

SMD soldering tutorial v2 (PIC12F615)

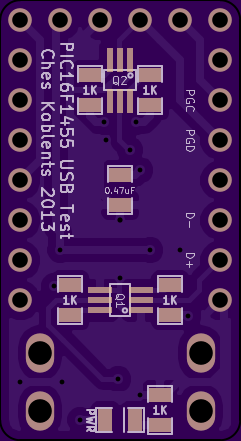

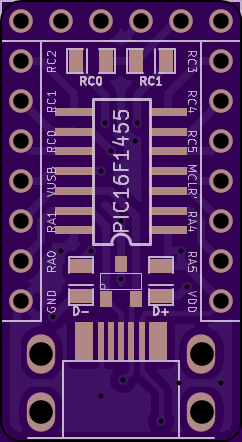

PIC USB test harness v1 (PIC16F1455)

Pictures taken with my shiny new macro lens! I may or may not have figured out how to use it properly. The boards are very purple, which isn't shown as well as it should be. Also, the macro lens shows enough details that you can see the silkscreen being very choppy - it's deposited in a rectangular way; this is completely normal, and just usually not seen without a microscope.

This week in design: AC signals are so much cleaner with PCBs than on a breadboard! Here are some boards I ordered from Osh Park for 60 cents per three boards. (Don't worry, I batched my order into a bigger one to make sure Osh Park didn't lose money on shipping.) The PCBs are still bread-boardable, so there are no downsides (except the wait time).

Unipolar rectifier for a square wave

Bandpass filter, RC

This should work for all the Rebel series. I only have the T3/1100D.

The good news is that remote control is drastically simpler than you would expect. The camera takes a 2.5mm audio jack. The tip of the jack is the release shutter, the middle band is the autofocus, and the base band (the sleeve; the band closest to the jack body) is common.

The two functions are activated when they're shorted to common.

I will want to control the camera in several ways:

• Pushbuttons to focus and release shutter
• A microcontroller with programmable modes
• External sources

Update 3/28/18: This appears to be fixed in the newer KiCAD libraries, and probably has been for some time.

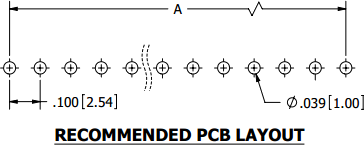

KiCAD's default collection of libraries has an issue in the connect footprint library, including the set of SIL footprints. (The SIL footprints are usually used for things like headers). In short, many manufacturers recommend 1mm diameter holes. KiCAD uses holes just slightly bigger than 0.8mm. This is not an academic issue - it caused problems for me! A manufacturer-recommended footprint looks like this:

An update to my previous post: Boards are ordered (from Osh Park).
